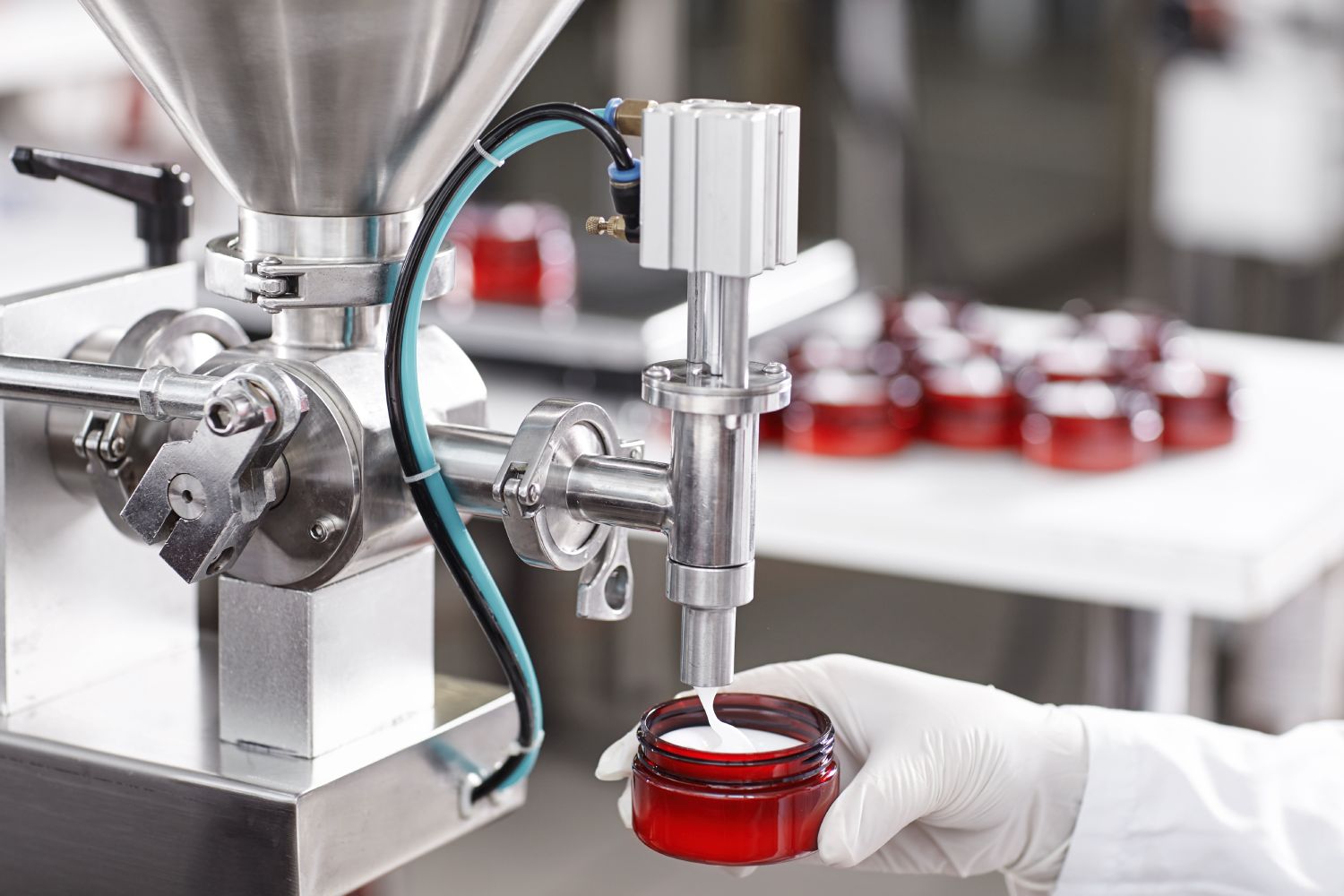

What Is a Piston Filler?

In industries that require the precise filling of containers with thick or viscous liquids, piston fillers have become a go-to solution. From a small business bottling artisanal sauces to a large manufacturer packaging cosmetics or pharmaceuticals, these machines offer unmatched performance and reliability. Their unique mechanical design makes them particularly effective for handling products that are too dense for gravity-fed systems or too delicate for high-speed rotary fillers.

If your operations require accuracy, cleanliness, and the ability to handle diverse product consistencies, understanding piston fillers can help you make the right investment.

What Are Piston Fillers?

Piston fillers are a type of liquid filling machine that operates using a volumetric filling principle.

Unlike gravity fillers that rely on the force of gravity to move product into containers, piston fillers use a mechanical piston to draw and dispense product with high precision. This process makes them particularly effective for thick, sticky, or chunky substances that don’t flow easily. Because the product is physically pushed through the system rather than relying on passive flow, piston fillers can also accommodate products with particulates (like salsa or fruit preserves) without clogging or disrupting the fill cycle.

Common applications of piston fillers include foods like honey, peanut butter, and salad dressings; cosmetic products like lotions, gels, and creams; and industrial products such as adhesives, lubricants, and cleaning pastes.

The volumetric nature of piston fillers ensures that each container receives an exact amount of product, which is especially important in industries with stringent packaging requirements. Their consistent accuracy and ability to handle a wide variety of container types make piston fillers one of the most versatile and reliable filling solutions available.

Key Components of a Piston Filler

It’s important to understand the anatomy of a piston filler to fully understand its operation and benefits. Each component plays a critical role in ensuring the machine performs with precision and reliability.

Piston

The piston is the driving force behind the fill cycle. During the intake phase, it retracts to create a vacuum that draws product into the cylinder. In the dispensing phase, it pushes forward to expel the product through the nozzle and into the container.

The diameter and stroke length of the piston determine the volume of product it can handle, and high-quality pistons are built to maintain consistent performance even under continuous use.

Cylinder

The cylinder houses the piston and serves as the chamber where the filling volume is measured. It must be precisely machined to ensure an airtight seal and smooth motion.

A well-calibrated cylinder allows for accurate volumetric filling, ensuring each container receives the same amount of product. The cylinder also needs to be constructed from materials that are compatible with the product being filled, such as stainless steel for food-grade or corrosive substances.

Hopper

The hopper acts as a reservoir, feeding product into the cylinder. It holds bulk quantities of the product and often includes features like agitation paddles or heating elements to maintain product consistency and flow. For example, a heated hopper might be used when working with viscous materials like waxes or oils that solidify at room temperature.

An efficient hopper design ensures a steady, uninterrupted supply of product to the piston chamber.

Nozzle

The nozzle directs the flow of product from the cylinder into the container.

The choice of nozzle significantly impacts the cleanliness and speed of the filling operation. Specialized nozzles can be fitted to reduce drips, control foaming, or handle products with particulates. Some nozzles are designed to dive into containers during filling to minimize splashing or air entrapment.

Valve System

The valve system regulates the direction of product flow, switching between intake and dispense phases. Typically, it includes one-way intake and outlet valves that open and close automatically in sync with the piston’s motion. This mechanism ensures that the product moves efficiently from the hopper to the container without backflow or leakage.

The reliability of these valves is crucial for maintaining hygiene and preventing cross-contamination in multi-product lines.

Control Panel

In semi-automatic and automatic piston fillers, the control panel serves as the user interface for configuring the machine. Operators can set parameters such as fill volume, speed, and dwell time to match the specific requirements of each product.

Advanced models may include programmable logic controllers (PLCs) and touchscreens for greater automation and flexibility. This level of control not only boosts productivity but also reduces the likelihood of operator error.

How Does a Piston Filler Work?

Piston fillers operate through a simple yet precise mechanical process that ensures consistent and accurate filling. The cycle consists of coordinated movements of the piston and valve system, which work together to draw in and dispense the product.

The entire process can be broken down into three main phases. This three-phase operation makes piston fillers ideal for applications requiring high precision and clean dispensing, even when dealing with dense or particulate-laden substances.

Phase 1: Intake

In the first phase of the filling cycle, the piston retracts inside the cylinder. The backward motion creates a vacuum, which draws the product from the hopper into the cylinder. The intake valve opens while the discharge valve remains closed to ensure that product only flows into the chamber. The size of the vacuum and the length of the piston’s stroke determine the volume of product drawn in.

This phase is especially important for ensuring consistency in every fill.

Phase 2: Dispense

Once the cylinder is filled with product, the piston pushes forward in the dispense phase. This forward motion forces the product out of the cylinder, through the open discharge valve, and into the nozzle. The intake valve simultaneously closes to prevent backflow. Depending on the design of the nozzle, the product may be injected into the container from above or with a diving motion to minimize splashing or foaming.

This step ensures that the precise amount of product is dispensed every time.

Phase 3: Valve Action & Reset

The final phase involves resetting the valves and piston to prepare for the next cycle. The discharge valve closes, and the intake valve reopens in readiness for another intake phase. In automated systems, this cycle can occur rapidly and repeatedly, with minimal variation between fills.

The reliability of the valve system is essential to maintain one-way flow and prevent contamination or leakage.

Types of Piston Fillers

Piston fillers come in several configurations to suit different operational needs. Each type offers varying levels of control, efficiency, and output based on the application.

Manual Piston Fillers

Manual piston fillers are hand-operated machines, which makes them ideal for small-batch production or testing environments. They are cost-effective, simple to operate, and require minimal setup and maintenance.

While not suitable for high-volume applications, manual piston fillers offer excellent control and precision for low-throughput operations.

Semi-Automatic Piston Fillers

Semi-automatic piston fillers automate the filling cycle but require an operator to place and remove containers. They strike a balance between control and efficiency, so they work best for mid-range production.

The semi-automatic nature of this type of filler offers increased productivity compared to manual models, without the full cost of automation.

Automatic Piston Fillers

Fully automated piston fillers integrate with conveyor systems and container handling mechanisms for continuous, high-speed production.

These machines require minimal human intervention and can be programmed for different container sizes and fill volumes. They are ideal for large-scale manufacturing environments that demand high throughput and consistency.

5 Benefits of Using Piston Fillers

Piston fillers offer a wide range of advantages that make them a preferred solution in many industries. Whether you’re managing a high-speed production line or producing small batches of specialty products, their mechanical reliability and precision can dramatically improve efficiency.

1. Flexibility

Piston fillers excel at handling a broad spectrum of product viscosities, from water-like liquids to extremely thick substances like peanut butter or heavy creams. This flexibility makes them ideal for operations where multiple product types are processed on the same line.

For instance, a cosmetics manufacturer might use one piston filler to package both light lotions and thick body butters. The ability to adapt quickly without extensive reconfiguration adds tremendous value to versatile production environments.

2. Versatility

In addition to accommodating various product consistencies, piston fillers are compatible with a wide range of container shapes and sizes.

These machines can be easily adjusted to suit different formats, like jars, tubes, bottles, or tubs. Their versatility makes them a go-to option for contract packagers and manufacturers producing multiple products.

With the right accessories, a single piston filler can support diverse packaging needs without compromising fill quality.

3. Accuracy

Because piston fillers use a measured volume in a cylinder to control fill quantity, they deliver consistent, repeatable results every time. For products sold by volume, especially in industries such as pharmaceuticals or nutraceuticals where regulatory compliance is non-negotiable, this accuracy is essential.

Accurate filling also reduces product waste and improves customer satisfaction by maintaining uniform fill levels across all containers.

4. Reliability

The mechanical simplicity of piston fillers contributes to their long-term durability and ease of maintenance.

With fewer moving parts than more complex filling systems, these machines are less prone to breakdowns and typically require less downtime for repairs. It makes them especially valuable in environments where production uptime is critical, such as food manufacturing or industrial chemical packaging.

5. Cost-Effectiveness

Over time, the efficiency and reliability of piston fillers translate into significant cost savings. Lower maintenance requirements, reduced product waste, and increased throughput all contribute to a strong return on investment.

Even businesses operating on tighter budgets can benefit from a piston filler, especially when starting with a manual or semi-automatic model and scaling up as production grows.

Is a Piston Filler the Right Choice for Your Operation?

Choosing the right liquid filling equipment depends on your product characteristics, production volume, and operational goals. To determine whether a piston filler is the right solution for your business, consider the following questions:

Are you filling thick, viscous, or particulate-laden products that are difficult to manage with gravity-fed systems?
Do you need consistent, repeatable filling accuracy across a range of container sizes?
Is your operation handling multiple products with different viscosities that require flexible equipment?
Are you looking for a cost-effective solution that can grow with your production demands?
Is ease of cleaning and maintenance a priority for your team?

Evaluating your specific needs against these criteria to determine if a piston filler aligns with your production goals. If you’re still uncertain, consulting with a filling equipment specialist can help guide your decision and ensure you are investing in the most suitable system for your application.

Maintenance Tips for Optimal Piston Filler Performance

Regular maintenance extends the life of your piston filler and helps it continue to perform with accuracy and reliability. Consider incorporating the following maintenance tips into your routine.

Perform Regular Cleaning

Clean the filler thoroughly after each production run to prevent residue buildup and contamination. Disassemble nozzles, cylinders, and valves for a deep clean using warm water or an appropriate cleaning solution.

Keep Machine Parts Lubricated

Lubricate moving parts according to the manufacturer’s recommendations. Use food-grade lubricants for components in contact with consumable products, and reapply at intervals based on usage volume.

Inspect the Seal & O-Ring Regularly

Regularly check seals, gaskets, and O-rings for wear or degradation. Replace any compromised components immediately to avoid leaks or loss of pressure.

Check Pneumatic & Electrical Lines

Inspect air hoses, connections, and wiring for cracks, leaks, or corrosion. Ensure sensors and control panels are functioning properly to avoid machine failures.

Stick to a Preventive Maintenance Schedule

Establish a routine preventative maintenance schedule for deep inspections, part replacements, and calibration checks. This proactive approach helps you avoid costly downtime.

Troubleshooting Common Piston Filler Issues

Even with proper setup and maintenance, piston fillers may occasionally present operational issues. Timely troubleshooting helps minimize downtime and maintain product consistency.

Let’s take a look at some of the most common problems and how to resolve them effectively. If any of these issues persist despite basic troubleshooting, consult the manufacturer’s manual or contact a service technician for support.

The Problem: Inconsistent Fill Volumes

If you notice variations in fill levels across containers, the root causes could include air pockets in the cylinder, incorrect piston calibration, or worn-out valve seals. To resolve this issue, ensure all connections are airtight and verify that the stroke setting on the piston matches your desired volume. Replace any worn gaskets or seals.

The Problem: Dripping or Leaking Nozzles

Leaking or dripping after dispensing can waste product and create messes on the line. This problem is often due to buildup on the nozzle tip or a degraded nozzle seal. Clean the nozzle thoroughly and inspect the seals; replace them if needed. Installing anti-drip nozzles may also help prevent this problem.

The Problem: Product Not Drawing into Cylinder

If the product fails to enter the cylinder during the intake phase, there may be a clog in the intake valve or an issue with product flow from the hopper. First, check for any blockages or hardened product in the intake valve and hopper feed. Ensure that the hopper is adequately filled and, if necessary, agitated to maintain proper flow.

The Problem: Machine Won’t Cycle

A piston filler that won’t initiate or complete its cycle may be experiencing power, pneumatic, or sensor-related issues. Confirm that the air compressor or power supply is functioning and connected correctly. Check the emergency stop buttons and verify that all safety sensors are aligned and operational.

The Problem: Irregular Nozzle Dispensing

Erratic or misdirected product flow from the nozzle could indicate misalignment or partial clogs. Inspect the nozzle for buildup or damage and clean it thoroughly. Adjust the nozzle position to ensure proper alignment with containers and test for even, clean dispensing.

Get Started with a Piston Filler from Oden Machinery

Piston fillers have proven themselves as dependable, efficient, and adaptable machines for countless businesses across food, cosmetic, pharmaceutical, and industrial sectors. Their ability to deliver precise, repeatable fills while accommodating a wide range of viscosities and container types makes them a smart investment for operations of any size. If you are just getting started with your production line or looking to expand your current operations, a piston filler can play a pivotal role in streamlining your packaging process.

At Oden Machinery, we specialize in supplying liquid packaging equipment that meets the highest standards of quality, performance, and reliability. Every machine is thoroughly inspected, refurbished, and supported with expert service to ensure your production line operates smoothly and efficiently.

We know that every business has unique needs. Our team is ready to help you evaluate your options and recommend a liquid filling system tailored to your goals.
